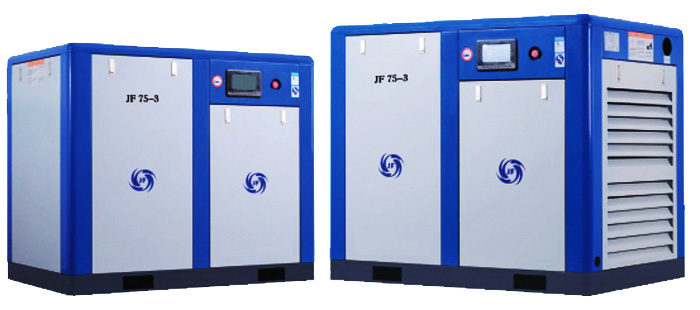

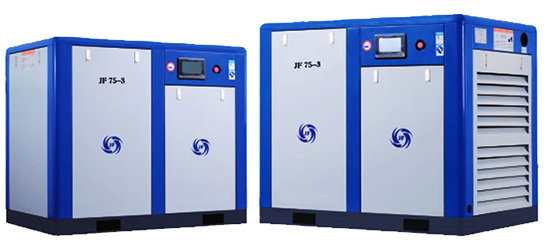

Oil-injected Rotary Screw Compressor, Low Pressure Series
Our low pressure series oil-injected rotary screw compressor features high stability, low noise and low energy consumption. These features decrease running cost. The compressor offers high performance and efficiency.
The Low pressure oil-injected rotary screw compressor is widely applied. It is applied in textile industry, cement industry, bottle blowing industry, and gas delivering, etc.
Features
- Energy saving
- Outlet air pressure of the compressor is 3bar-5bar. Compared to the 7bar-8bar compressors, the low pressure compressor saves about 30% of energy, which is cost effective and energy-saving;
- This is convenient for on-site installation;
- All parts are installed inside the compressor. There is no need for on-site assembling, and is ready to use.
Technical Parameters
Oil-injected Rotary Screw Compressor, Low Pressure Series (0.4/0.5MPa)| Model | JF-15AZ | JF-20AZ | JF-25AZ | JF-30AZ | JF40AZ | JF-50AZ | JF60AZ | JF75AZ | JF-100AZ | JF-120AZ | JF-150AZ | JF-175AZ | JF-200AZ | JF-250AZ | JF-280AZ | JF-300AZ |
| Power kw | 11kw | 15kw | 18.5kw | 22kw | 30kw | 37kw | 45kw | 55kw | 75kw | 90kw | 110kw | 132kw | 160kw | 185kw | 200kw | 220kw |
| Pressure MPa | 0.5 | |||||||||||||||
| 0.4 | ||||||||||||||||
| Air Displacement m³/min | 2.4 | 3 | 3.6 | 5 | 6.3 | 7 | 10 | 16 | 20.6 | 24.6 | 28.4 | 33 | 36.6 | 42.2 | 51 | 51 |
| 3.1 | 3.7 | 5.2 | 6.5 | 7.2 | 10 | 13.2 | 20.8 | 24.8 | 28.6 | 33.2 | 37 | 42.4 | 51.2 | 51.2 | ||
| Noise Level dB(A) | 68±2 | 70±2 | 72±2 | 74±2 | 76±2 | 78 ± 2 | 80 ± 2 | 82 ± 2 | ||||||||
| Air Outlet Size | G1" | G1½" | G2" | G2½" | G3"/DN100 | DN125 | DN150 | |||||||||
| Oil Volume L | 18±1 | 25±1 | 56±1 | 94±1 | 126±1 | 196±1 | ||||||||||
| Dimensionsmm （L×W×H） | 1380 | 1500 | 1900 | 2000 | 2500 | 3000 | 3200 | |||||||||
| 850 | 1000 | 1250 | 1250 | 1470 | 1700 | 1980 | ||||||||||
| 1150 | 1320 | 1600 | 1670 | 1840 | 1950 | 2150 | ||||||||||
| Weight kg | 510 | 550 | 740 | 850 | 1200 | 1300 | 1450 | 2150 | 2360 | 3100 | 4150 | 4300 | ||||
| Pressure Range | 0.38-0.50 | |||||||||||||||
| 0.3-0.4 | ||||||||||||||||
| Model | JF-30AZ | JF-40AZ | JF-50AZ | JF-60AZ | JF-75AZ | JF-100AZ | JF-120AZ | JF-150AZ | JF-175AZ | JF-200AZ | JF-250AZ |
| Power kw | 22 | 30 | 37 | 45 | |55 | 75 | | 90 | 110 | 132 | 160 | 185 |
| Pressure Mpa | 0-3 | ||||||||||
| Air Displacement m³/min | 6.4 | 7.6 | 10.3 | 13.2 | 16.4 | 21 | 25.2 | 33.4 | 37.6 | 42.6 | 51.5 |
| Noise Level dB(A) | 72±2 | 74±2 | 76±2 | 79±2 | 82±2 | ||||||
| Air Outlet Size | G2" | G2½" | G3"/DN100 | DN125 | DN150 | ||||||
| Oil Volume L | 56±1 | 74±1 | 96±1 | 128±1 | 200±1 | 210±1 | |||||
| Dimensions mm （L×W×H） | 1900×1250×1600 | 2000×1250×1670 | 2500×1470×1840 | 3000×1700×1950 | 3200×1980×2150 | ||||||
| Weight kg | 1200 | 1320 | 2100 | 3000 | 3800 | 4000 | |||||
| Pressure Range | 0.24-0.32 | ||||||||||
