Oil-Free Piston Compressor
Oil-free piston compressor is suitable for conditions acquiring air purity and environmental-friendliness, of which all moving parts are oil-lubricated or self-lubricated. As a result, the outlet air contains no oil or oil vapor.
Features
- The oil-free piston compressor applies Φ90 standard cylinder that’s made of HT250 cast iron, which is durable.
- The piston compressor applies CYPR piston ring and valve plate made in Sweden
- International standard motor with copper winding is applied, which is able to avoid overheating damage
- Enlarged device case, double pressure relief valve design, low noise, low possibility of oil leakage and spout.
- Five-hole valve plate with a good sealing performance.
Technical Parameters
| Model | Power | Air Displacement | Pressure | Speed | Weight | Dimensions |
| KW | m³/min | Mpa | r/min | Kg | L*W*H | |

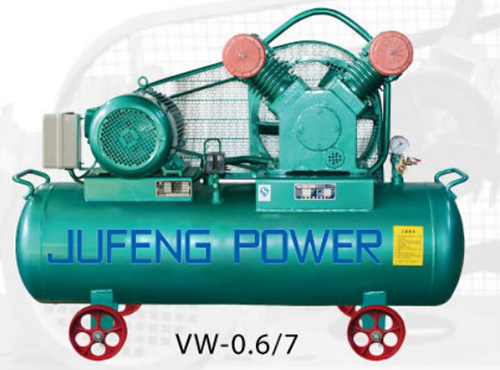

| VW-0.6/7 | 5.5 | 0.6 | 0.7 | 950 | 260 | 1300*460*960 |

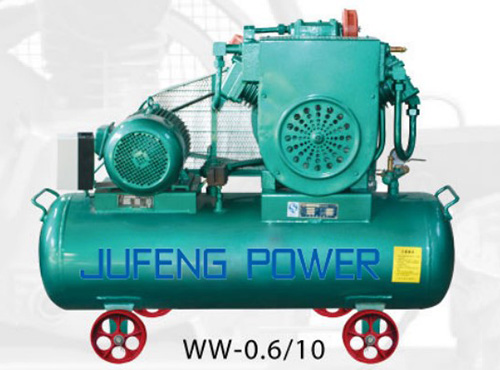

| WW-0.6/10 | 5.5 | 0.6 | 1 | 740 | 320 | 1450*500*1100 |
| WW-0.7/12.5 | 7.5 | 0.7 | 1.25 | 740 | 340 | 1450*500*1100 |

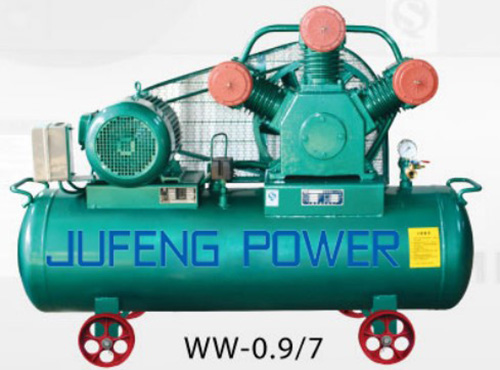

| WW-0.9/7 | 7.5 | 0.9 | 0.7 | 810 | 350 | 1450*500*1100 |
| WW-0.9/10 | 7.5 | 0.9 | 1 | 810 | 350 | 1450*500*1100 |
| WW-1.25/7 | 11 | 1.25 | 0.7 | 820 | 460 | 1600*650*1200 |
| WW-1.25/10 | 11 | 1.25 | 1 | 820 | 460 | 1600*650*1200 |

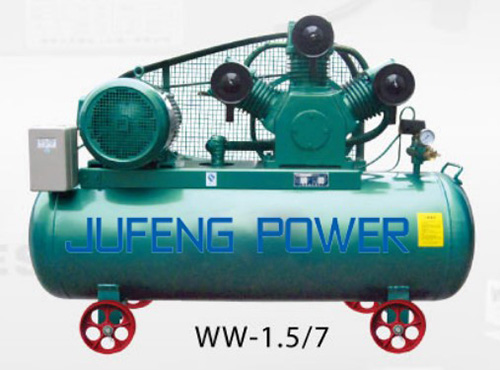

| WW-1.5/7 | 11 | 1.5 | 0.7 | 820 | 460 | 1680*500*1250 |
| WW-1.8/7 | 2*7.5 | 1.8 | 0.7 | 810 | 720 | 1980*1290*1520 |
| WW-1.8/10 | 2*7.5 | 1.8 | 1 | 810 | 720 | 1980*1290*1520 |
| WL-11/7(10/8) | 65 | 11 | 0.7 | 450 | 1700 | 1877*855*1822 |
Guangdong Jufeng Manchinery Manufacturing Co., Ltd. is a professional air compressor manufacturer, dedicated to air compressor researching, developing, and manufacturing. We have our very own factory. It is equipped with 12 advanced production lines, with a production output of about 40000 (of kinds of products) per year. At Jufeng, we stand for industry-leading quality in air compressors. In nearly every industry driven by compressed air technology, our reputation speaks for itself. You will find Jufeng air compressors raising the bar for performance and emerging as a leader in the industry. Designed to deliver reliable, stable pressure, low operating and maintenance costs, and ongoing energy savings, Jufeng products are a great choice for any growing business.
