Piston Compressor, Variable Speed Air Compressor
Our variable speed piston air compressor is specially designed for PET bottle blowing industry, featuring high pressure and stable air output. It is stable and durable.
Features
- International standard motor with copper winding is applied, which features high performance and good stability
- A patented smart phase protector is applied to protect the three-phase motor from phase loss damage, which ensures security, and the protector is convenient for installing.
- Unique oil injection port design is applied. The product is able to avoid oil leakage and spout caused by high oil levels
- Connecting rod of the compressor is thickened and stored inside a special-made copper cover, increasing durability
- Double pressure relief valve design, low internal pressure, low noise.
Technical Parameters
| Model | Power | Air Displacement | Pressure | Speed | Compressed Air Storage Volume | Weight | Dimensions | |
| KW | HP | m³/min | Mpa | r/min | m³ | Kg | L*W*H | |
| W-0.5/30 | 7.5 | 10 | 0.5 | 3 | 730 | 0.18 | 290 | 1470*530*1020 |
| W-0.6/20 | 7.5 | 10 | 0.6 | 2 | 860 | 0.18 | 290 | 1470*530*1020 |
| W-0.6/25 | 7.5 | 10 | 0.6 | 2.5 | 860 | 0.18 | 290 | 1470*530*1020 |

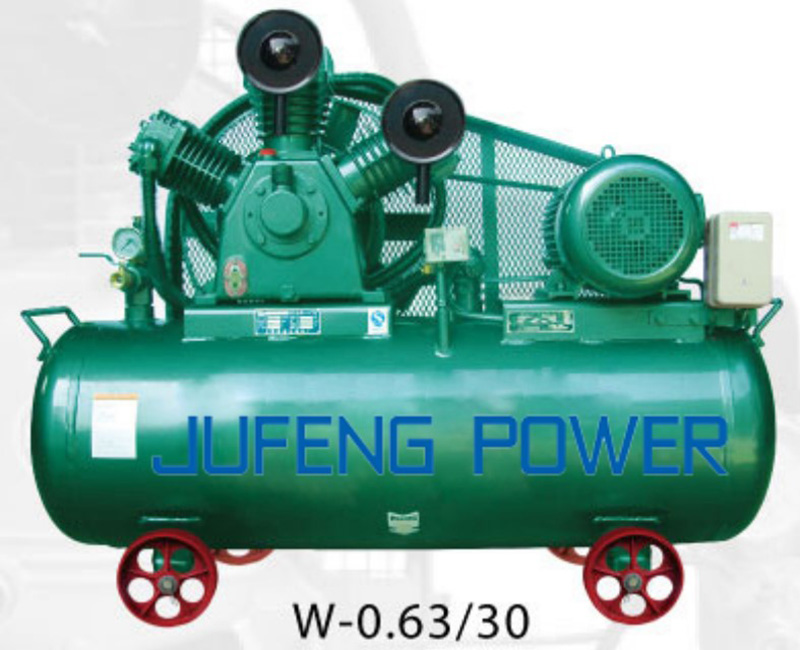

| W-0.63/30 | 7.5 | 10 | 0.63 | 3 | 800 | 0.22 | 430 | 1490*600*1160 |
| W-0.7/25 | 7.5 | 10 | 0.7 | 2.5 | 880 | 0.22 | 430 | 1490*600*1160 |
| W-0.8/20 | 7.5 | 10 | 0.8 | 2 | 980 | 0.22 | 430 | 1490*600*1160 |

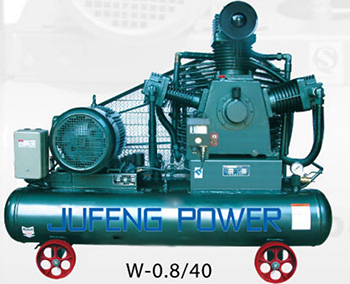

| W-0.8/40 | 15 | 20 | 0.8 | 4 | 760 | 0.16 | 520 | 1620*730*1320 |

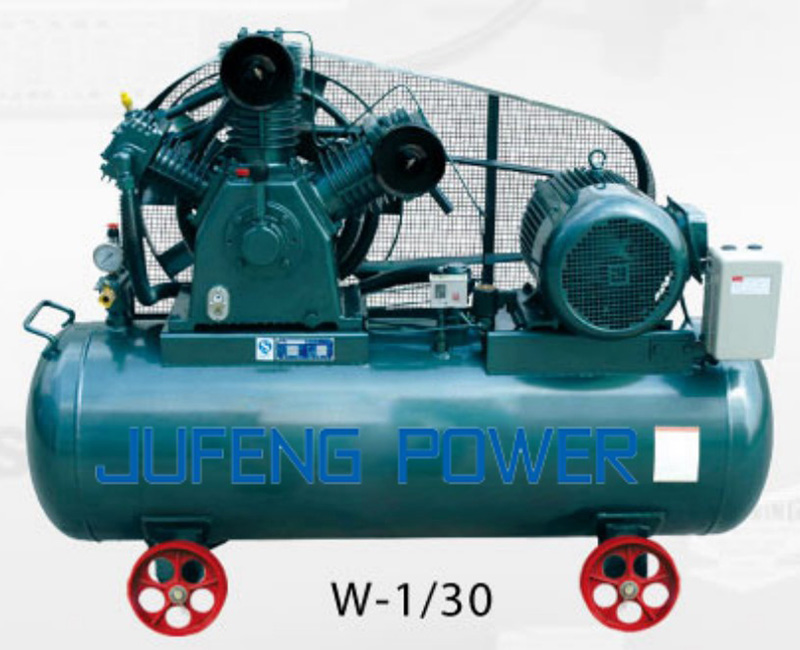

| W-1/30 | 11 | 15 | 1 | 3 | 800 | 0.32 | 530 | 1790*530*1200 |
| W-1/40 | 15 | 20 | 1 | 4 | 820 | 0.16 | 560 | 1660*800*1360 |
| W-1.2/25 | 11 | 15 | 1.2 | 2.5 | 880 | 0.32 | 530 | 1790*530*1200 |
| W-1.2/30 | 15 | 20 | 1.2 | 3 | 800 | 0.388 | 600 | 1800*750*1400 |
| 2W-1.6/40 | 2*11 | 2*15 | 1.6 | 4 | 760 | Customized | 580 | 1600*1300*2200 |
| 2W-2/30 | 2*11 | 2*15 | 2 | 3 | 800 | Customized | 580 | 1300*1100*850 |
| 2W-2/40 | 2*15 | 2*20 | 2 | 4 | 820 | Customized | 1200 | 2000*900*1700 |

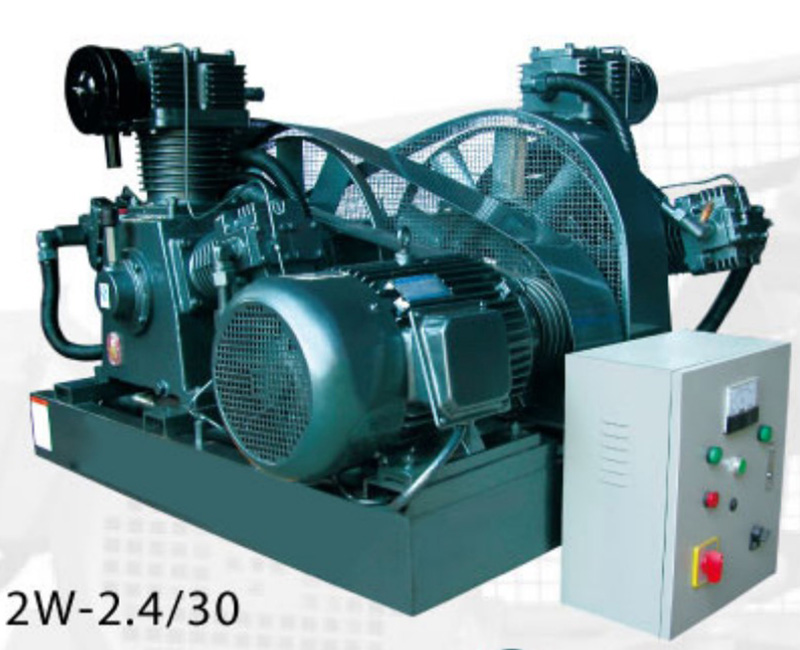

| 2W-2.4/25 | 2*11 | 2*15 | 2.4 | 2.5 | 880 | Customized | 580 | 1300*1100*850 |
| 2W-2.4/30 | 2*15 | 2*20 | 2.4 | 3 | 800 | Customized | 600 | 1400*1200*950 |
| 4W-4/30 | 4*11 | 4*15 | 4 | 3 | 800 | Customized | 2000 | 1850*1650*1450 |
Guangdong Jufeng Manchinery Manufacturing Co., Ltd. is a professional air compressor manufacturer, dedicated to air compressor researching, developing, and manufacturing. We have our very own factory. It is equipped with 12 advanced production lines, with a production output of about 40000 (of kinds of products) per year. At Jufeng, we stand for industry-leading quality in air compressors. In nearly every industry driven by compressed air technology, our reputation speaks for itself. You will find Jufeng air compressors raising the bar for performance and emerging as a leader in the industry. Designed to deliver reliable, stable pressure, low operating and maintenance costs, and ongoing energy savings, Jufeng products are a great choice for any growing business.
