Piston Compressor, D Series
Features
- The piston compressor applies Φ51 standard cylinder that’s made of HT250 cast iron, equipped with CYPR piston ring and valve plate made in Sweden, reliable and durable;
- Premium motor with built-in protector is applied to avoid overheating damage;
- Enlarged enclosure, double pressure relief valve design, low noise, low possibility of oil leakage and spout.
Technical Parameters
| Model | Power | Air Displacement | Pressure | Speed | Cylinder Bore And Cylinder Number | Weight | Dimensions | |
| KW | HP | m³/min | Mpa | r/min | Φ*PCS | Kg | L*W*H | |
| AW1608 | 1.5 | 2 | 0.16 | 0.8 | 1250 | Φ51*2 | 85 | 980*400*770 |
| AW2508 | 2.2 | 3 | 0.25 | 0.8 | 1170 | Φ65*2 | 109 | 1100*420*810 |

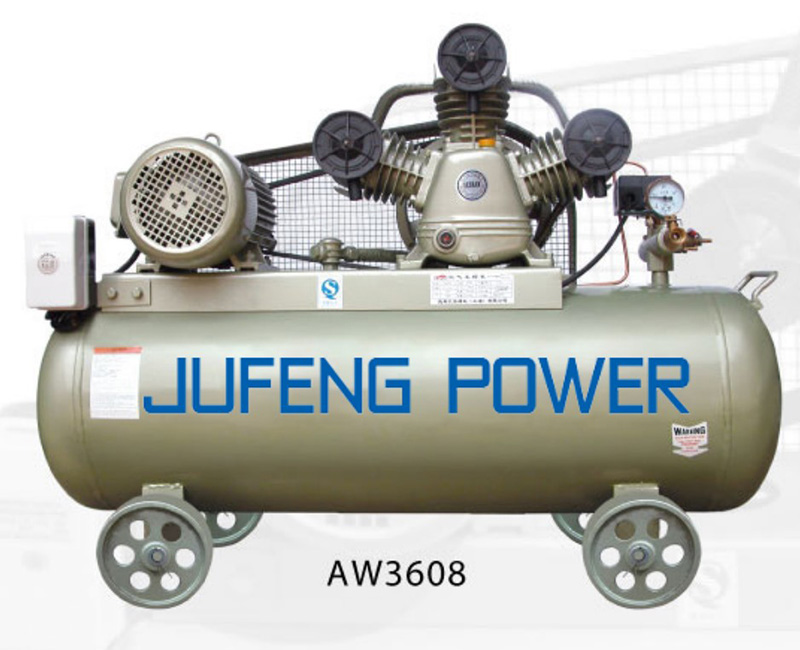

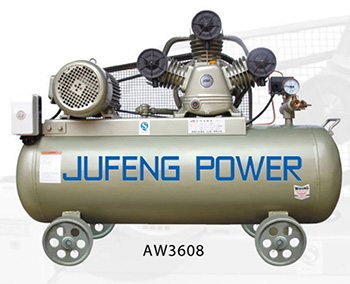

| AW3608 | 3 | 4 | 0.36 | 0.8 | 1000 | Φ65*3 | 137 | 1200*450*860 |
| AW4008 | 4 | 5.5 | 0.4 | 0.8 | 1000 | Φ80*2 | 179 | 1330*460*990 |

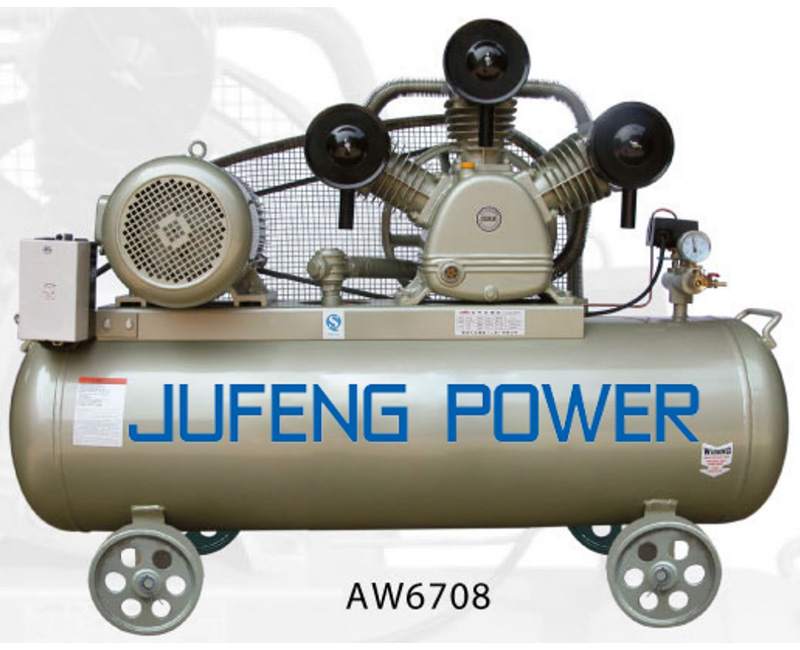

| AW6708 | 5.5 | 7.5 | 0.67 | 0.8 | 1080 | Φ80*3 | 237 | 1480*540*1050 |

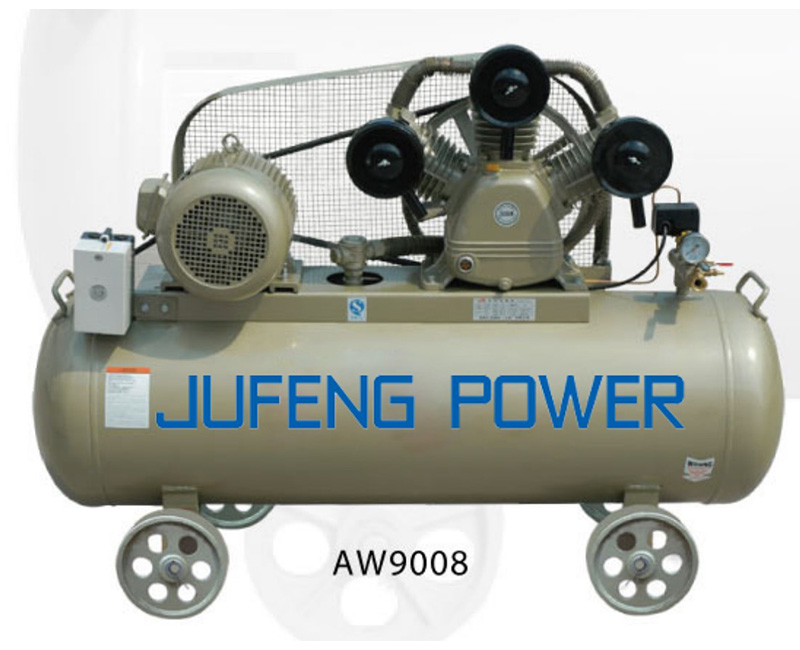

| AW9008 | 7.5 | 10 | 0.9 | 0.8 | 1060 | Φ90*3 | 291 | 1600*560*1100 |
| AW15008 | 11 | 15 | 1.5 | 0.8 | 900 | Φ100*3 | 420 | 1710*700*1230 |

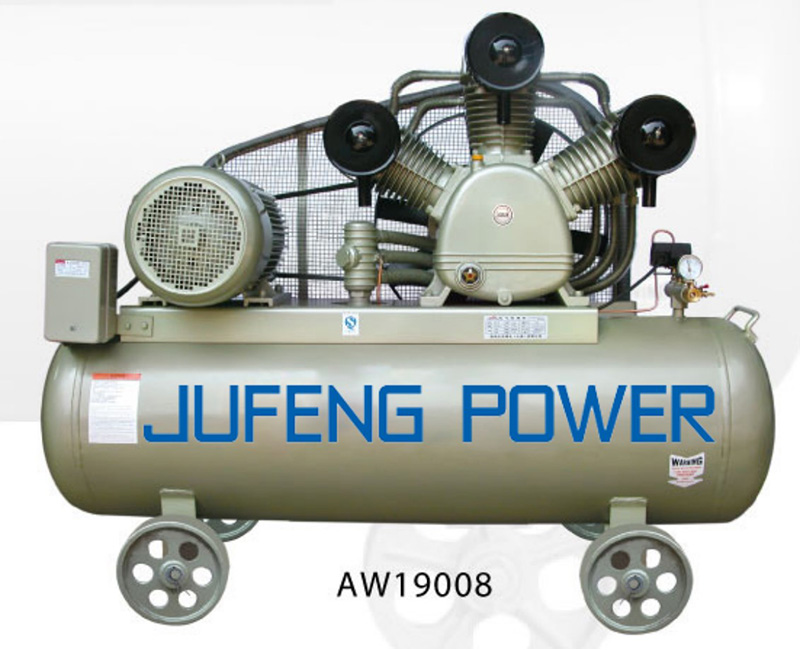

| AW19008 | 15 | 20 | 1.9 | 0.8 | 920 | Φ120*3 | 587 | 1800*720*1340 |
Guangdong Jufeng Manchinery Manufacturing Co., Ltd. is a professional air compressor manufacturer, dedicated to air compressor researching, developing, and manufacturing. We have our very own factory. It is equipped with 12 advanced production lines, with a production output of about 40000 (of kinds of products) per year. At Jufeng, we stand for industry-leading quality in air compressors. In nearly every industry driven by compressed air technology, our reputation speaks for itself. You will find Jufeng air compressors raising the bar for performance and emerging as a leader in the industry. Designed to deliver reliable, stable pressure, low operating and maintenance costs, and ongoing energy savings, Jufeng products are a great choice for any growing business.
