Piston Compressor, Power Series
Our power series piston compressor features low energy cost, long lifespan, convenience for maintenance, etc. The compressor is applied in various industries, including metallurgy, machinery, chemical industry, instrument industry, food industry, medical industry, etc.
Features
- The piston compressor applies Φ70 standard cylinder that’s made of HT250 cast iron. The compressor is durable, fast for air intaking, and is available to get painted;
- International standard 2.2 motor with copper winding is applied with a built-in protector. This avoids overheating damage.
- The piston compressor applies a CYPR piston ring and valve plate made in Sweden;
- A thickened 25# steel construction is applied, ensuring high durability.
Technical Parameters
| Model | Power | Air Displacement | Pressure | Speed | Compressed Air Storage Volume | Weight | Dimensions | |
| KW | HP | m³/min | Mpa | r/min | m³ | Kg | L*W*H | |
| V-0.8/12.5 | 7.5 | 10 | 0.8 | 1.25 | 730 | 0.32 | 400 | 1650*560*1220 |

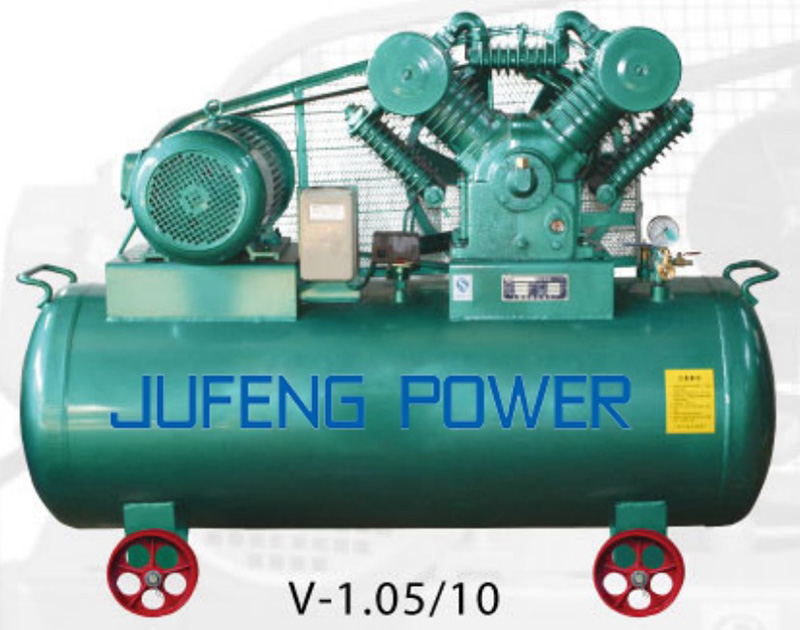

| V-1.05/10 | 7.5 | 10 | 1.05 | 1 | 860 | 0.32 | 400 | 1650*560*1220 |
| V-1.05/12.5k | 7.5 | 10 | 1.05 | 1.25 | 860 | 0.32 | 400 | 1650*560*1220 |
| V-1.2/10 | 11 | 15 | 1.2 | 1 | 1000 | 0.32 | 530 | 1650*560*1220 |
| Z-1.6/10 | 11 | 15 | 1.6 | 1 | 830 | 0.2 | 530 | 1600*794*1329 |
| V-3/7 | 18.5 | 25 | 3 | 0.7 | 980 | 0.3 | 960 | 1470*1180*1270 |

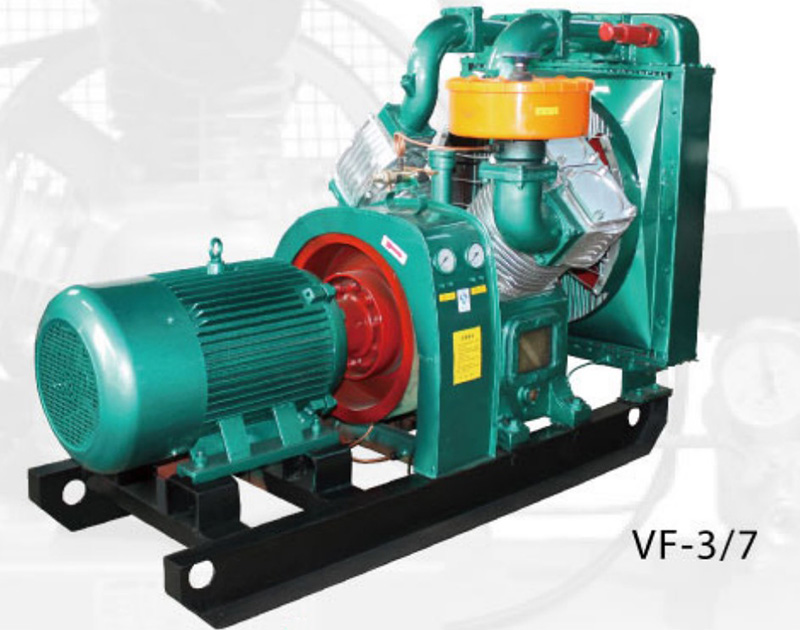

| VF-3/7 | 22 | 30 | 3 | 0.7 | 980 | 0.3 | 1240 | 1668*1140*1270 |
| V-3/10 | 22 | 30 | 3 | 1 | 980 | 0.3 | 1160 | 1470*1180*1270 |

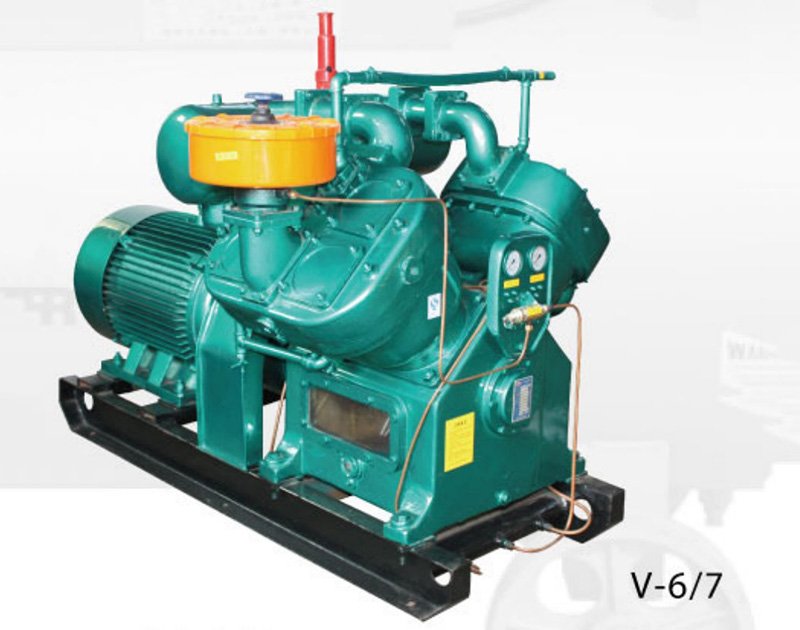

| V-6/7 | 37 | 50 | 6 | 0.7 | 980 | 0.6 | 1280 | 1750*1200*1310 |
| VF-6/7 | 37 | 50 | 6 | 0.7 | 980 | 0.6 | 1400 | 2090*1400*1230 |

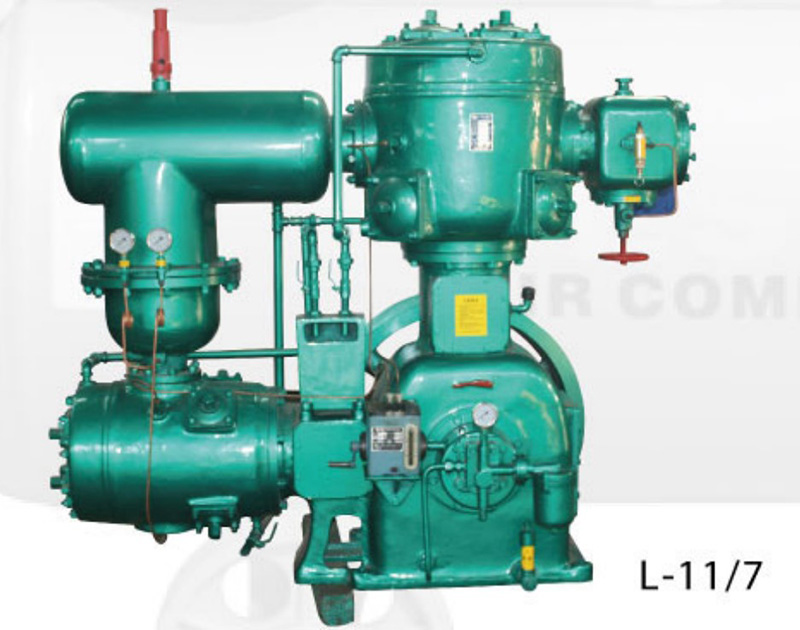

| 3L-10/8 (L-11/7) | 65 | 87 | 10 | 0.8 | 490 | 1 | 1700 | 1877*885*1822 |
Guangdong Jufeng Manchinery Manufacturing Co., Ltd. is a professional air compressor manufacturer, dedicated to air compressor researching, developing, and manufacturing. We have our very own factory. It is equipped with 12 advanced production lines, with a production output of about 40000 (of kinds of products) per year. At Jufeng, we stand for industry-leading quality in air compressors. In nearly every industry driven by compressed air technology, our reputation speaks for itself. You will find Jufeng air compressors raising the bar for performance and emerging as a leader in the industry. Designed to deliver reliable, stable pressure, low operating and maintenance costs, and ongoing energy savings, Jufeng products are a great choice for any growing business.
